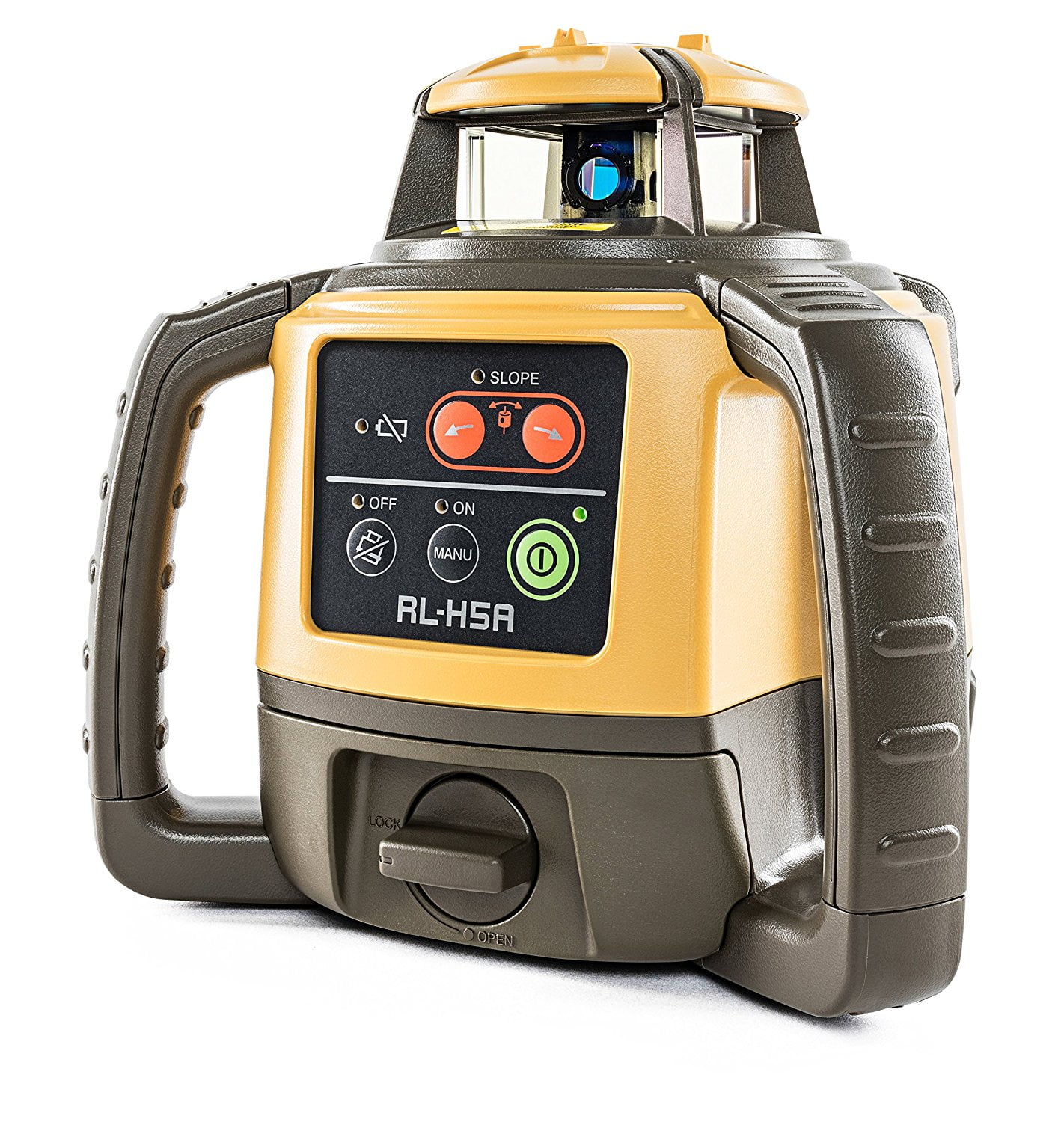

Topcon RL-H5A Self-Leveling Rotary Grade Laser

<p>The Topcon rl-H5A is a top-of-the-line rotary laser, designed to level construction sites with precision and ease. It is an ideal tool for professionals in the excavation, concrete, landscaping, and other general construction industries. The H5A touts an impressive range, emitting a laser beam up to 2,600 feet with an exceptional accuracy of ±1/16 inch at 100 feet. The H5A is equipped with the industry standard self-leveling capabilities that can adjust within a range of ±5 degrees. In addition, it has manual slope built in allowing a user to manually grade up to 5%.This Topcon rl-H5A package includes the rl-H5A rotary laser, an LS-80X or LS-100D receiver, the sensor 8 receiver bracket to mount the LS-80 receiver to a grade rod, and a hard carrying case.&nbsp;SpecsSelf-leveling range: ±5 degreesAccuracy: ±1/16 inch at 100 feet (±1.5 mm at 30 meters)Working range (diameter): Up to 2,600 feet (800 meters) with detectorGrading:&nbsp;5% Manual SlopeRotation speed: 600 RPMBattery life: Approximately 100 hours (alkaline batteries)Operating temperature range: -4°F to 122°F (-20°C to 50°C)Water and dust protection: IP66 ratingDimensions: 7.7" x 8.3" x 6.9" (195 x 210 x 175 mm)Weight: 5.5 lbs (2.5 kg)Laser diode: 635nm (visible)Laser class: 3R&nbsp;In The Box(1) Topcon RL-H5A Horizontal Self-Leveling Rotary Laser (Alkaline or rechargeable depending on the package chosen)(1) Topcon LS-80X or LS100D Laser Receiver (depending on package chosen)(1) Sensor Holder 6 Receiver Mounting Bracket(1) Hard Carrying Case(1) User Manual**Alkaline Batteries in the package&nbsp;(1021200-50) not included due to shipping reasons.</p>

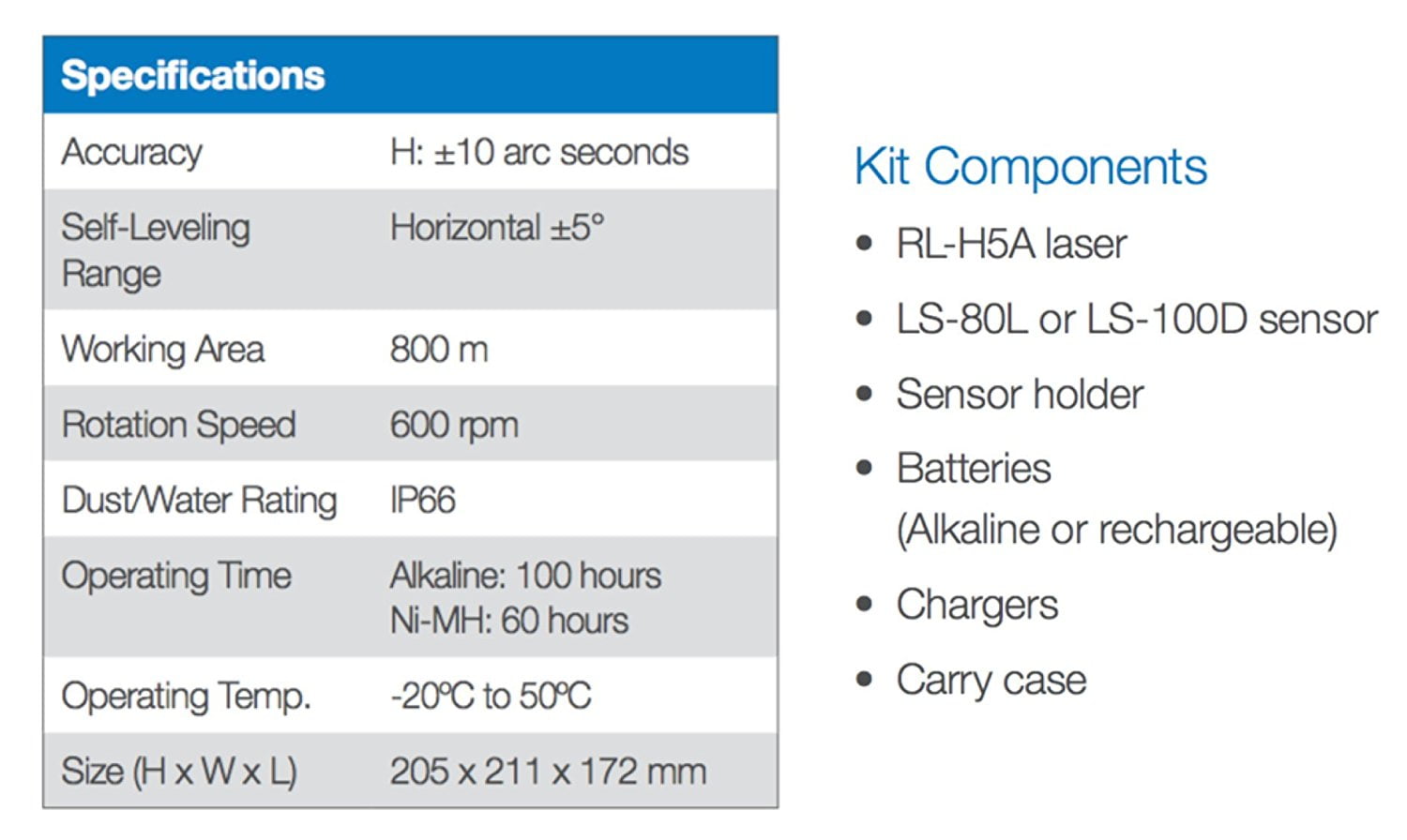

• Specifications
• Self-leveling range: ±5 degrees
• Accuracy: ±1/16 inch at 100 feet (±1.5 mm at 30 meters)
• Working range (diameter): Up to 2,600 feet (800 meters) with detector
• Grading: 5% Manual Slope
• Rotation speed: 600 RPM
• Battery life: Approximately 100 hours (alkaline batteries)
• Operating temperature range: -4°F to 122°F (-20°C to 50°C)
• Water and dust protection: IP66 rating
• Dimensions: 7.7" x 8.3" x 6.9" (195 x 210 x 175 mm)
• Weight: 5.5 lbs (2.5 kg)
• Laser diode: 635nm (visible)
• Laser class: 3R  Product Description The Topcon rl-H5A is a top-of-the-line rotary laser, designed to level construction sites with precision and ease. It is an ideal tool for professionals in the excavation, concrete, landscaping, and other general construction industries. The H5A touts an impressive range, emitting a laser beam up to 2,600 feet with an exceptional accuracy of ±1/16 inch at 100 feet. The H5A is equipped with the industry standard self-leveling capabilities that can adjust within a range of ±5 degrees. In addition, it has manual slope built in allowing a user to manually grade up to 5%. This Topcon rl-H5A package includes the rl-H5A rotary laser, an LS-80X or LS-100D receiver, the sensor 8 receiver bracket to mount the LS-80 receiver to a grade rod, and a hard carrying case. In The Box
• (1) Topcon RL-H5A Horizontal Self-Leveling Rotary Laser (Alkaline battery)
• (1) Topcon LS-80X Laser Receiver
• (1) Sensor Holder 6 Receiver Mounting Bracket
• (1) Hard Carrying Case
• (1) User Manual **Alkaline Batteries in the package (1021200-50) not included due to shipping reasons. Brochures and Manuals
• Topcon RL-H5A Rotary Laser Brochure
