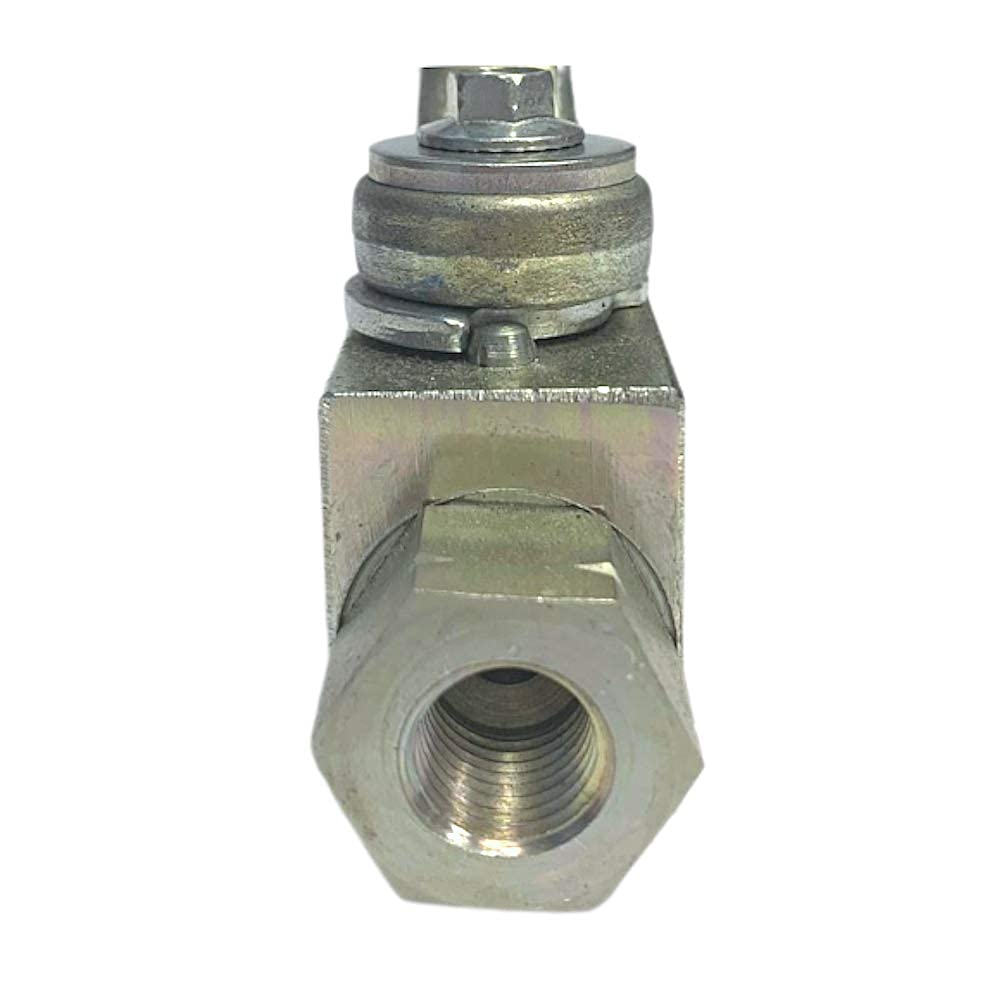

German Carbon Steel High Pressure Ball Valve, 1/4” NPT Female Threaded, up to 7000 PSI (500 Bar), BKH Type Hydraulic Flow Control Valve, 2 Port Shut-Off Valve
Product details
| Management number | 211105313 | Release Date | 2026/04/04 | List Price | US$15.32 | Model Number | 211105313 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
High pressure valves are applied to set the pressure in a circuit part to counterbalance external force or a weight. The working pressure is commonly high in order to keep the load from free-falling. High-pressure ball valve helps to control fluid movement in full open and full close position. It is recommended to install in piping system that has the same pressure load and connection type. For instance, hydraulic system, pipelines, and heavy-duty industry. High pressure ball valve is also highly durable. The size range offered is between 1/8” to 4”. As the valve size increases, the pressure rating decreases. To install a ball valve, there are 3 checklists that you have to take note. Before the installation, kindly confirm that the ball valve fits the intended usage and design. It is crucial to examine the valve for any damage and ensure that the pipeline is clean. During the installation, do avoid inflicting external tensions or vibrations. Use a proper tool to connect the valve and pipe together. Besides that, tighten the screws crosswise. After the installation, test the ball valve. Avoid unscrewing the installed ball valve. The material used for this high-pressure ball valve is steel with a working temperature between -20°C to +100°C. The connection type is female threaded NPT ends on each port. The working pressure is 7000 PSI (500 Bar).
- Made in Germany. This BKH heavy-duty ball valve has 2 female NPT threaded ports.
- Made of steel material with higher resistance against corrosion and rust. Recommended to be used in working temperature of -20°C to +100°C.
- Excellent capability to withstand high working pressure up to 7000 PSI (500 Bar). Recommended to be used in high pressure piping system.
- Highly durable as this high-pressure ball valve ensures good performance even after several cycles. The handle controls fluid in full open and full close position.
- Suitable to install in piping systems with connections at the same pressure load and corresponding connections.
| Size | 1/4"NPT |
|---|---|
| Brand Name | MHA-ZENTGRAF |
| Unit Count | 1 Count |
| Valve Type | Ball Valve |
| Item Weight | 0.4 Kilograms |
| Thread Size | 1/4 inch |
| Thread Type | NPT |
| Manufacturer | MHA-ZENTGRAF |
| Model Number | BKH-DN6-1/4"NPT-112A |
| Material Type | Carbon Steel |
| Connector Type | Threaded |
| Exterior Finish | Steel |
| Item Dimensions | 0.98 x 1.63 x 0.69 inches |
| Number of Ports | 2 |
| Maximum Pressure | 500 Bars |
| Specification Met | iso |
| Included Components | Handles, Valve |
| Inlet Connection Size | 0.25 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | NPT |
