Digital PID Thermostat Temperature Controller, 0 To 1300 degrees Celsius PID Temperature Controller Professional Waterproof For Chicken House

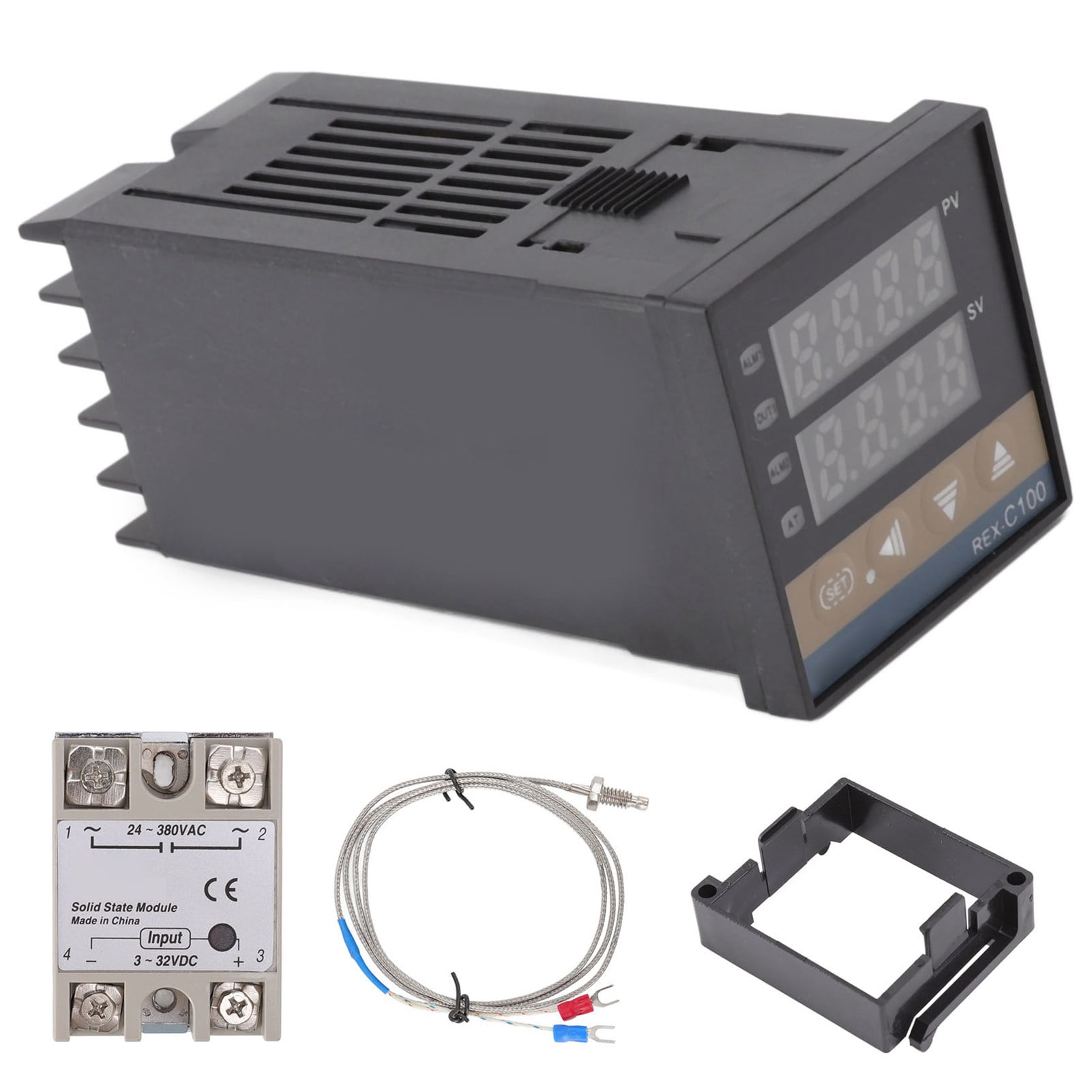

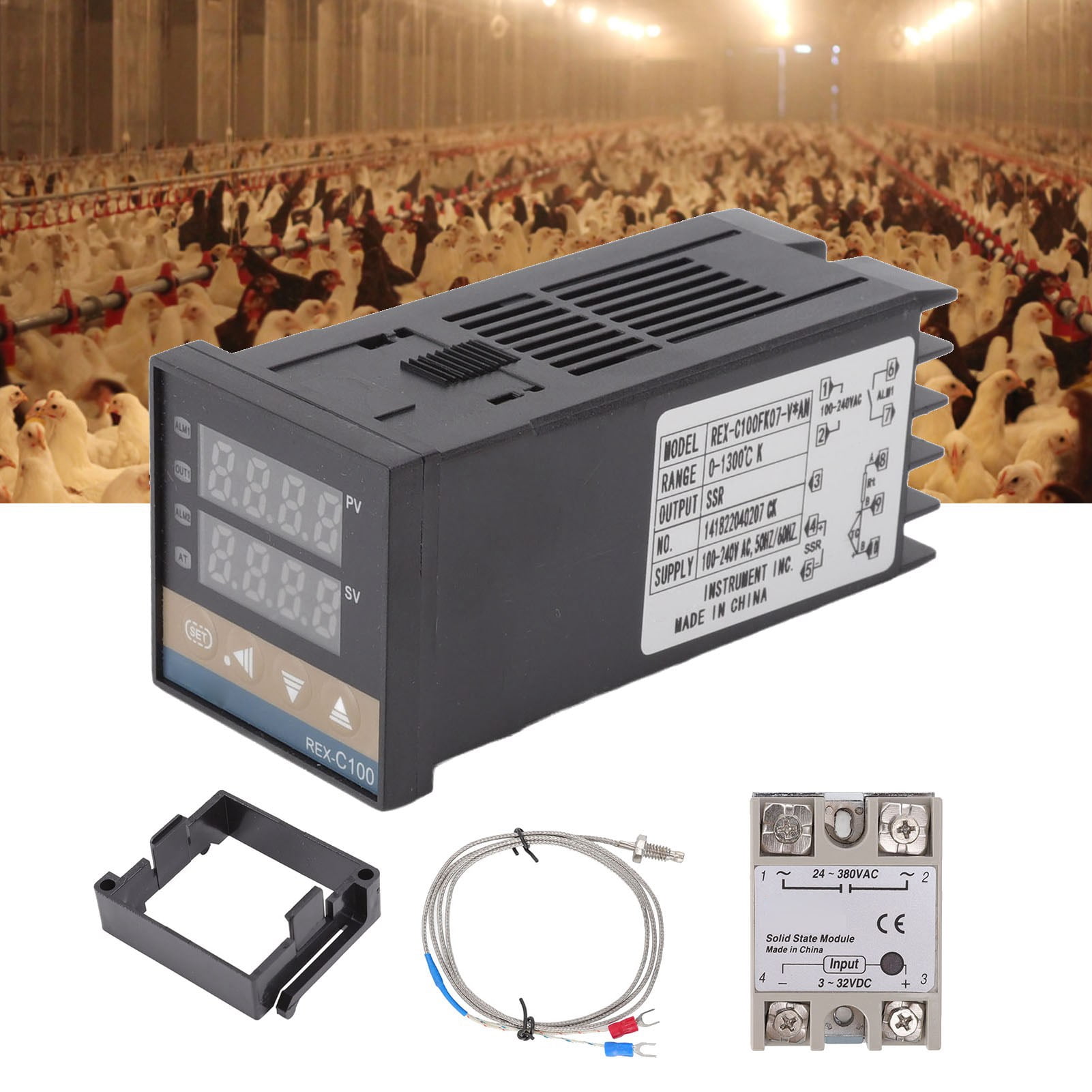

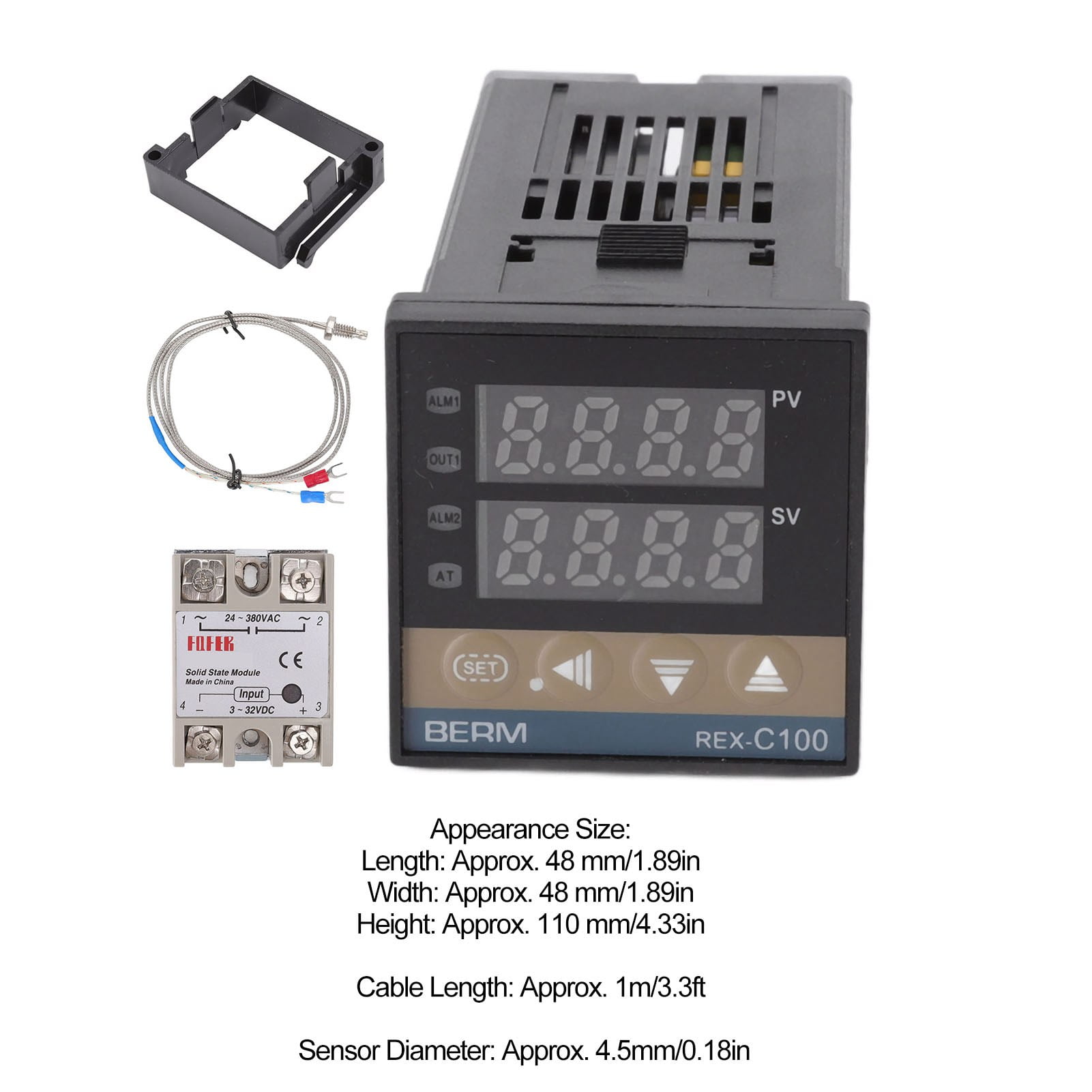

Digital PID Thermostat Temperature Controller Long 100V-240V and 3.3ft M6 Imperial K Type Thermocouple Relay Module<br/>Specification:<br/>Item Type: Digital PID Thermostat Temperature Controller<br/>Material: Plastic<br/>1. REX C100 Thermostat Long Model<br/>Measurement Accuracy: ±0.5% FS<br/>End Compensation Tolerance: 0 ~ 50 degrees Celsius Can Be Modified by Software ± 2 degrees Celsius <br/>Resolution: 14 Bits<br/>Sampling Period: 0.5 Seconds<br/>Power Supply: AC 100-240V 50 60HZ<br/>Process Value PV, Set Value SV<br/>Output, Alarm and Self Tuning Can Be Indicated By: LED<br/>PIN Control Including ON OFF, Step PID and Continuous PID<br/>Self Adjusting Control<br/>Delay Output: Contact Capacity 250V AC 3A Resistive Load<br/>Proportional Band P: 0 to Full Range When on off Control is Set to 0<br/>Detection Temperature Range: 0 ~ 1300 degrees Celsius <br/>Insulation Resistance: > 500M Ohm 500V DC<br/>Insulation Resistance: 1500V AC Min<br/>Insulation Resistance: Power Consumption <10VA<br/>Service Environment: 0 ~ 50 degrees Celsius <br/>Non Corrosive Gas Environment 30 ~ 85% RH<br/>Appearance Size: Approx. 48x48x110mm / 1.89x1.89x4.33in <br/>Scope of Application: For Electric Power, Chemical Industry, Injection Molding, Packaging, Food, Incubator, Oven, Heater Control, Etc.<br/>2. K Thermocouple Probe Cable<br/>Length: Approx. 1m/3.3ft<br/>Sensor Diameter: Approx. 4.5mm/0.18in<br/>Temperature Range: 0 ~ 400 degrees Celsius <br/>Internal Insulation: Glass Fiber<br/>External : Insulation <br/>3. Relay Module<br/>Output Voltage Range: Standard Type<br/>Input Voltage: DC 3-32V<br/>Output Voltage: 24-380V AC<br/> <br/><br/>Package List:<br/>1 x Digital PID Thermostat Temperature Controller 0-1300 Degrees1 x K Type Thermocouple 0-400 Degrees1 x Relay Module1 x Thermostat Bracket1 x Chinese and English Manual <br/><br/>Note:<br/>Please allow for some errors in manual measurements.

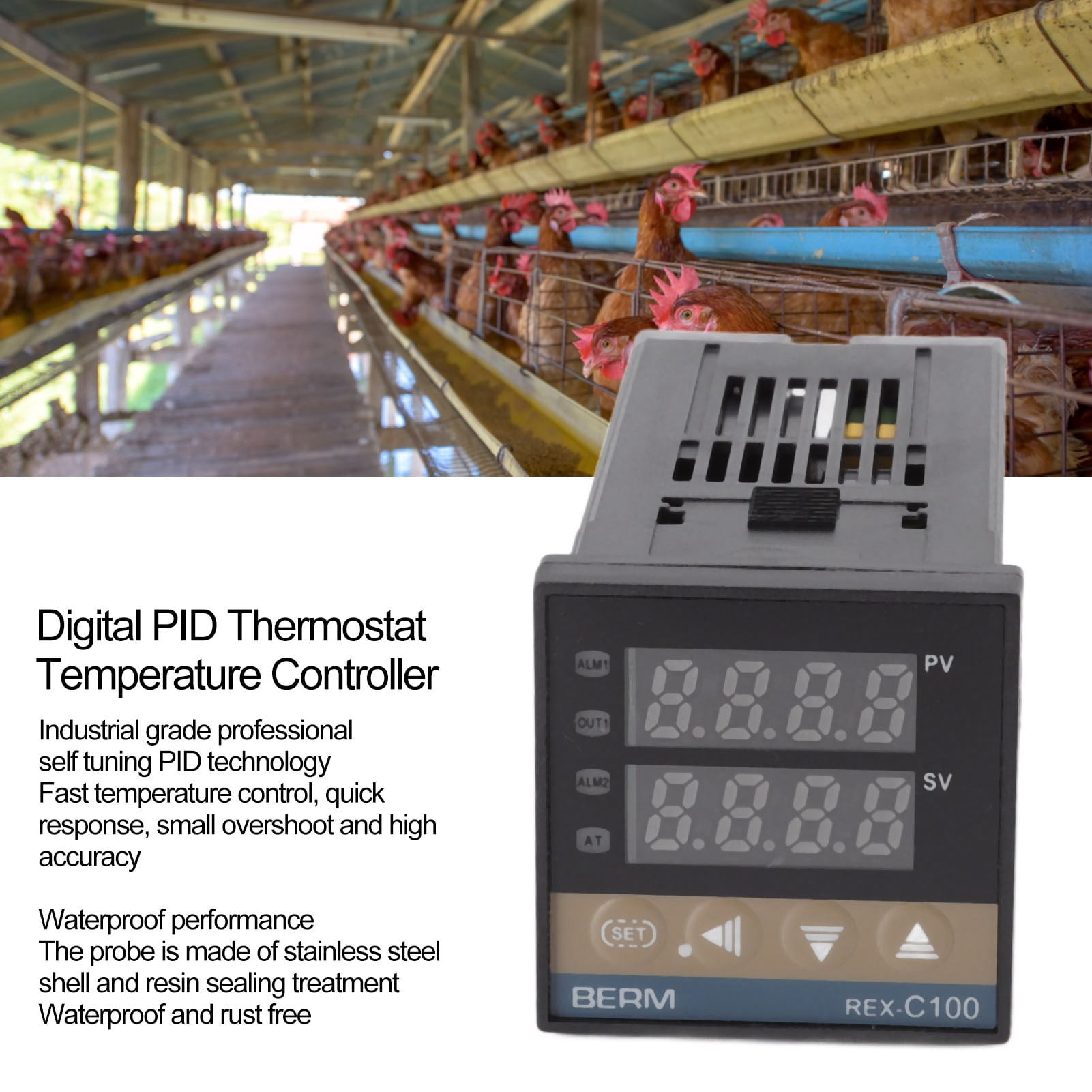

• Features: Digital LED temperature controller adopts industrial grade professional self tuning PID technology, compared with traditional PID control, has the characteristics of fast temperature control, quick response, small overshoot, high accuracy
• Waterproof, Corrosion Resistant: Digital PID thermostat temperature controller's probe adopts stainless steel housing and resin sealing treatment, waterproof and rust free, long service life
• Easy to Operate: The digital PID thermostat temperature controller provides intelligent temperature control and easy operation to help operators achieve excellent results

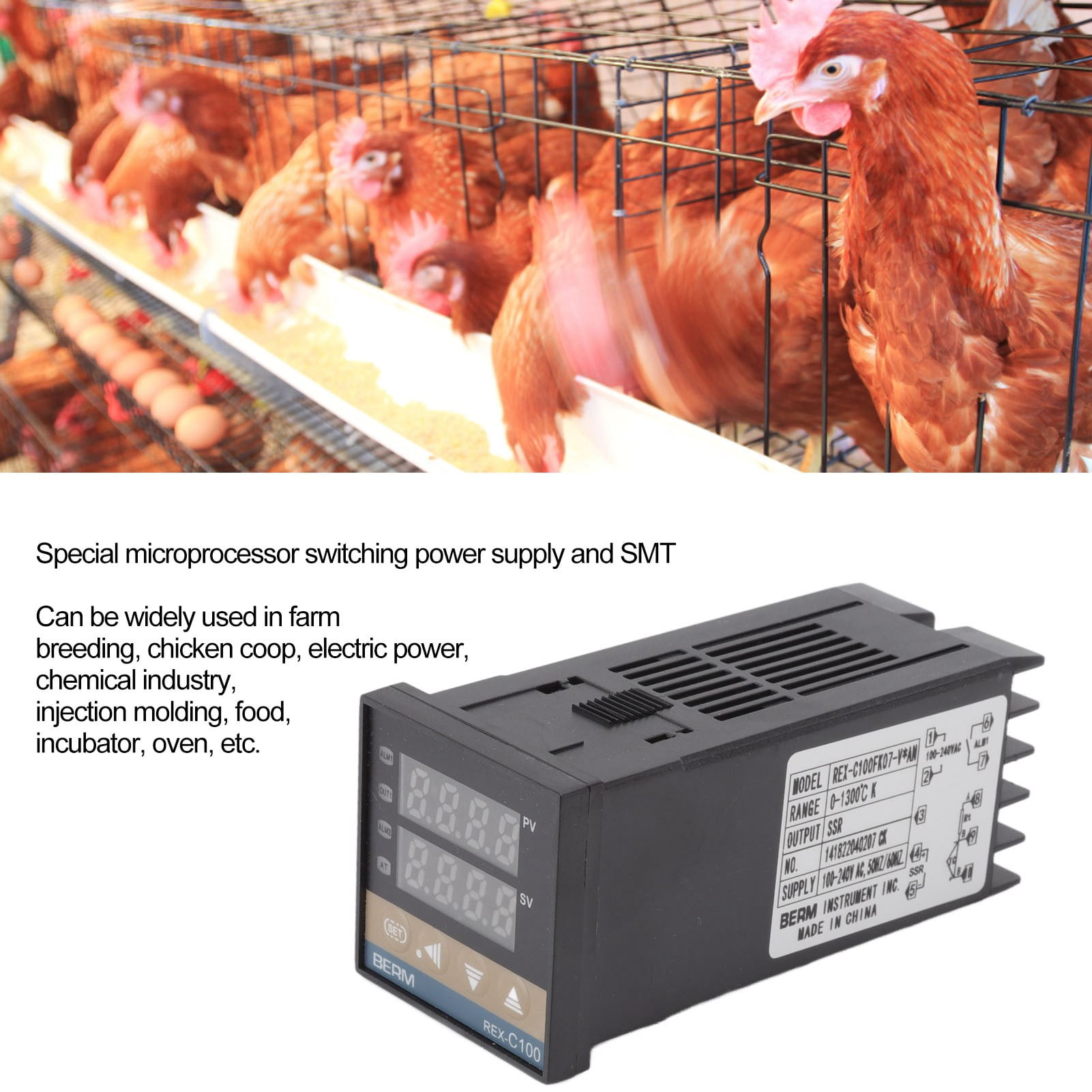

• Professional Configuration: This versatile digital PID thermostat temperature controller features a dedicated microprocessor switching power supply and SMT
• Widely : PID thermostat temperature controller can be widely in farming, chicken coops, power, chemical, injection molding, food, incubators, ovens and other equipment
